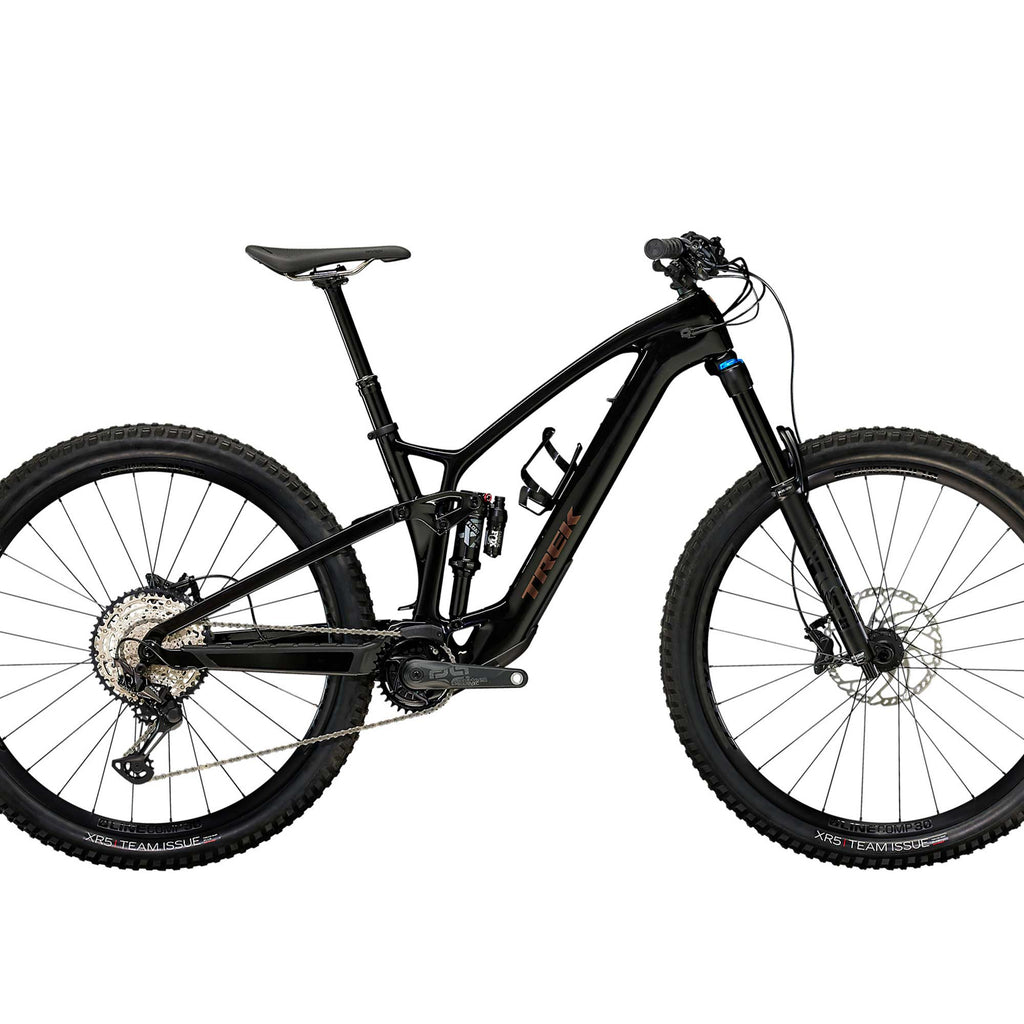

Trek Fuel EXe 9.7

$7,599.99

This bike is shippable within the USA.
Email us for a quote using the link above.


  MORE COMING!

Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that's light, lively, and just as playful as a traditional mountain bike, with the added benefit of pedal assist to help you crush climbs.

An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail.

  • Starting at $7,599.99

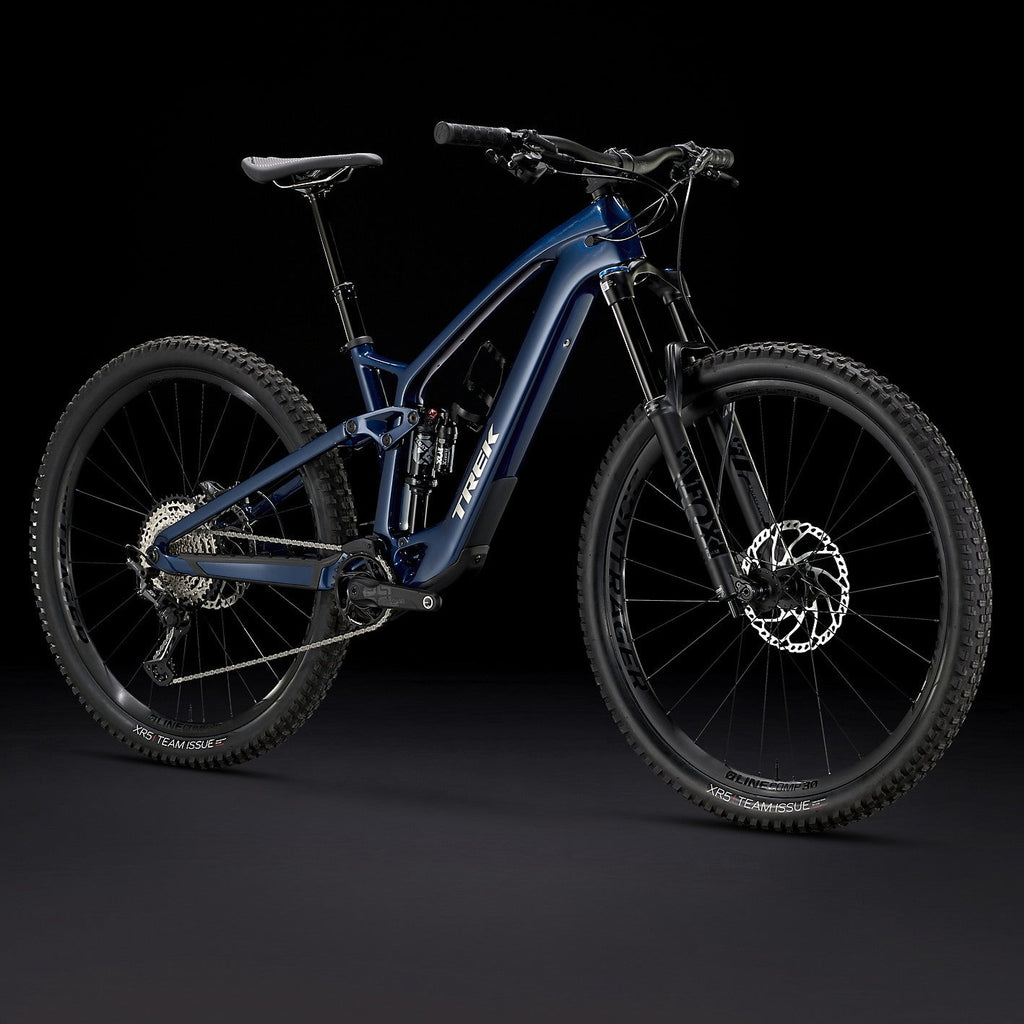

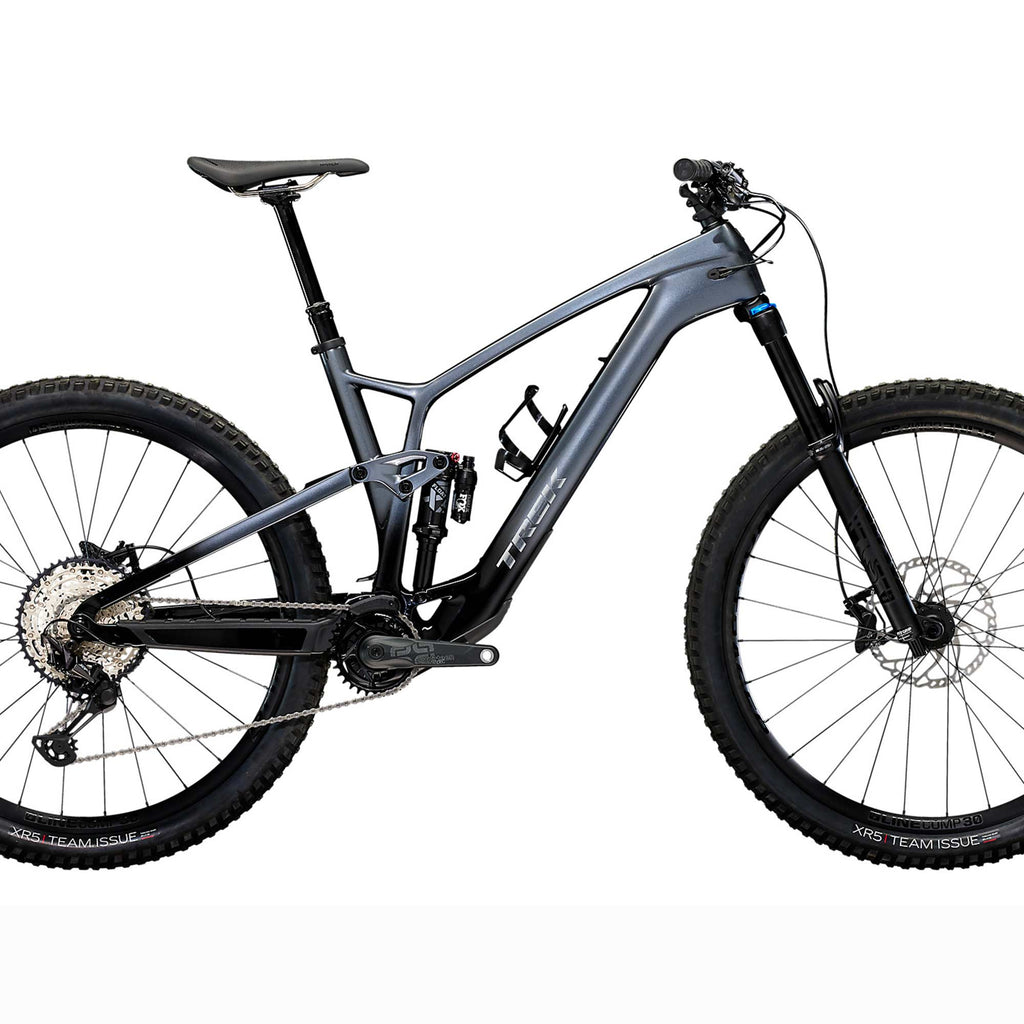

  • Colors:  Matte Galactic Grey to Black Fade, Matte Pennyflake, Deep Smoke & Mulsanne Blue

Why You'll Love It

  1. You'll get a light and playful ride on descents, and just the right amount of assist on the way back up
  2. Its tiny but mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel
  3. The smart charge port, sleek integrated display, and discreet controls keep the bike looking and feeling like a traditional mountain bike
  4. Its upgraded FOX suspension package offers you 150mm of front- and 140mm of rear-suspension for making quick work of technical and rowdy terrain
  5. You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

It's Right For You If...

You want the feel of a playful trailbike, plus a little extra power on the climbs. You want upgrades where it counts the most, like a premium suspension package and the perfect blend of components. You don't want to lose out on the natural experience of mountain biking, and want a refined motor that quietly assists while you ride.

The Tech You Get

An OCLV Mountain Carbon frame equipped with a fully-encased 360Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. 150mm FOX Rhythm 36 fork with Float EVOL air spring and GRIP damper, and 140mm FOX Performance Float X rear suspension. Plus tubeless-ready wheels and tires, and a 12-speed drivetrain of cherry-picked Shimano SLX and XT components.

The Final Word

Fuel EXe 9.7 is a playful trail ride that gives you extra fuel in the tank on climbs, and rides like a traditional bike on descents. It's packed with the space-age technology of a TQ transmission, 150mm of buttery-smooth travel for soaking up rock gardens, and a cherry-picked drivetrain that gives you upgrades where it matters most.

Sizing & Fit

The best way to find your perfect fit is to consult the experts here at Sunshine Bicycle Center.

Geometry

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
Frame OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9mm seat tube, upper chain guide mount, 55mm chainline, Mino Link, ABP, Boost148, UDH, 140mm travel
Fork Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel
Shock Fox Performance Float X, 2-position damper, 205mm x 60mm
Wheels
Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle
Hub front Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle
*Hub rear Size: S, M, L, XL
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Size: S, M, L, XL
Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
Skewer rear Bontrager Switch thru axle, removable lever
Rim Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle
Tire Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50''
Tire part Bontrager TLR sealant, 6oz
Rim strip Bontrager TLR
Drivetrain
Shifter Shimano SLX M7100, 12 speed
Rear derailleur Shimano XT M8100, long cage
Crank E*thirteen E*spec Plus, 34T, 165mm length
Crank arm E*thirteen E*spec Race alloy, 34T, 170mm length
Chainring E*thirteen E*spec, 32T alloy ring, 55mm chainline
Cassette Shimano SLX M7100, 10-51, 12 speed
Chain Shimano SLX M7100, 12 speed
Components
Saddle Bontrager Arvada, austenite rails, 138mm width
*Seatpost Size: S
TranzX JD-YSP39, 100mm travel, internal routing, 34.9mm
Size: M
TranzX JD-YSP39, 150mm travel, internal routing, 34.9mm
Size: L, XL
TranzX JD-YSP39, 170mm travel, internal routing, 34.9mm
Handlebar Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width
Grips Bontrager XR Trail Elite, nylon lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 caliper
*Brake rotor Size: S, M, L, XL
Shimano RT66, 6-bolt, 203mm
Size: S, M, L, XL
Shimano RT66, 6-bolt, 180mm
Accessories
Battery TQ 360Wh
*Controller Size: S, M, L, XL
TQ LED display with Bluetooth & ANT+ connectivity
Size: S, M, L, XL
TQ handlebar mounted
Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Electronics TQ 4A charger
Weight
Weight M - 19.05 kg / 42 lbs (with TLR sealant, no tubes)
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
